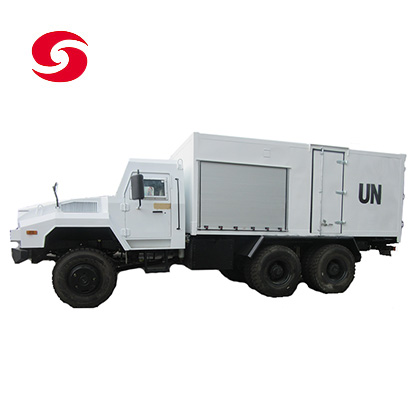

Dimensional parameters: overall dimensions (length × width × height) 7850 × 2480 × 3180
Cargo box length (mm) 4700
Wheelbase (mm) 3400+1400
Front suspension/rear suspension (mm) 1350/1700
Wheel base (front/middle/rear) 2116/1876/1876
Approach/departure angle (º) 35/24
Number of people allowed (person) 3
Performance parameters Curb weight (kg) 12500
Maximum allowable total mass of chassis (kg) 27000
Maximum allowable axle load (kg) front axle 7000, rear axle 10000+10000
Rated power (Kw/r/min) 221/2200
Maximum torque (N·m/r/min) 1125/1200
Displacement (L) 8.3
Maximum speed (km/h) 90
Minimum stable speed (km/h) 2.5
Maximum gradient (%) 60
Slope holding ability (%) 40
Minimum ground clearance (mm) 385 (lower end of axle housing)
Minimum turning radius (m) ≤8
Maximum vertical obstacle clearance height (mm) ≤600
Maximum trench crossing width (mm) ≤600
Maximum wading depth (mm) ≤1000
Fuel consumption per 100 kilometers under limited conditions (L) <22
Fuel tank volume (L) 280
Maximum driving range (km) 800
Drive mode 6×6 (time-sharing six-wheel drive)
Environmental adaptability requirements Working environment: -41ºC ~ +55ºC; Storage temperature: -55ºC ~ +70ºC; Altitude 5000m (allowing a corresponding decrease in power); Relative humidity: 90% (30ºC)
Order Name Status
1 Engine: Cummins C300 horsepower, inline six-cylinder, supercharged intercooled diesel engine, 221KW.
2 Transmission Manual nine-speed transmission.
3 Transfer case with high and low gears, electro-pneumatic operation.
4 Front axle: 7-ton integral axle, wheel speed reduction.
5 Rear axle: 10-ton+10-ton integrated axle, wheel speed reduction.
6 Suspension The front suspension is leaf spring with two two-way cylinder shock absorbers. The rear suspension is a leaf spring balanced suspension with a stabilizer bar.
7 Frame: Stamped and riveted frame structure, the maximum outer width of the frame is 861mm, and the maximum cross-sectional size of the longitudinal beam is 280×75×8
8 Tires 1. Ten off-road special military vehicle tires 12.00R20, with one spare tire. 2. The middle and rear axles have twin tires; a total of six outer tires on the front and middle wheels are equipped with bulletproof inner supports.
9 Electrical appliances 24V circuit system. Battery: two 12/180Ah, low temperature type.
10 Chassis Others 1. The chassis is equipped with hydraulic clutch assist, hydraulic steering assist, exhaust brake, and four-circuit air pressure brake. 2. The chassis is equipped with front and rear tow hooks. 3. The chassis is equipped with on-board tools and fire extinguishers and other on-board tools.
11 Cab 1. The passenger area of the cab is made of 8mm thick bulletproof steel plate and 39mm bulletproof glass. Meets EN1063-2000 (B6) level and STANAG4569 level 1 bulletproof standards. 2. The non-manned area at the front end of the cab is equipped with an optional 4mm bulletproof steel plate. 3. All drivers are equipped with seat belts, the seats are adjustable front and back, and the backrest angle is adjustable. 4. Cab area refrigeration and air conditioning. 5. The cab is equipped with FM radio, audio player, wiper and other electrical appliances. 6. The instrument cluster can display vehicle parameters such as engine water temperature, engine speed, vehicle speed and air pressure.
12 Cargo box and special tools 1. The outside of the tail box is a flat plate structure with a total length of 4.7 meters. 2. There is a double door at the rear, a single door in the middle on the left side, and rolling shutter doors can be opened on the left and right sides of the front end. 3. The compartment is equipped with various workstation tools, including 25kw small unit, air compressor, grinder and other tools.
13 Special protection: The outer side and bottom of the fuel tank are protected by 8mm bulletproof steel plates.
