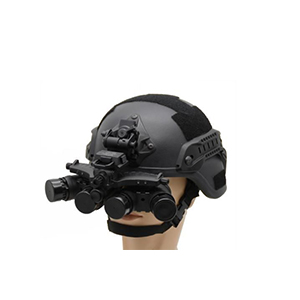

DTG-18N
The DTG-18N is not only powered by a battery on the device, but also by a remote battery packs, tethered to the unit via a standard DC cable. It comes with a pack that accepts four 3-Volt CR123A batteries that tend to power the unit for 50-80 hours (IR off). The remote battery pack provides a secondary function as a counterweight, which is needed considering the goggle weighs about 780g
Product Description：
The DTG-18N is not only powered by a battery on the device, but also by a remote battery pack, tethered to the unit via a standard DC cable. It comes with a pack that accepts four 3-Volt CR123A batteries that tend to power the unit for 50-80 hours (IR off). The remote battery pack provides a secondary function as a counterweight, which is needed considering the goggle weighs about 880g.
Technical specifications:
| MODE | DTG-18N |
| Generation | Gen 2+/Gen3(optional) |
| Magnification | 1X |
| FOV(°) | 120×50 +/-2 ° Horizontal 120+/-2 ° Vertical 50 +/-2 ° |
| Diopter | （+1.5~-2.5） |
| Capability | Flip-Up On-Off |
| Automatic Brightness Control | YES |
| Bright Light Cut-off | YES |
| Infrared Illuminator | Built-in(850nm 20mW) |
| IR Indicator | YES |
| Low Battery Indicator | YES |
| Battery type | CR123Ax1 / CR123Ax4 Battery pack |
| Power supply | 2.6-4.2V |
| Battery capacity | 800-3200maH |
| Optical distortion | 0.5% Max |
| Eye relief | 30mm |
| Pupil diameter | 8mm |
| Operating temperature(℃) | -40–+55℃ |
| Humidity range | 5%-95% |
| Waterproof | IP65/IP67 |
| Dimensions | 150x130x75 mm /155x136x83mm |
| Weight | 495g(housing)/780g(finished)&590g(housing)/880g(finished) |
