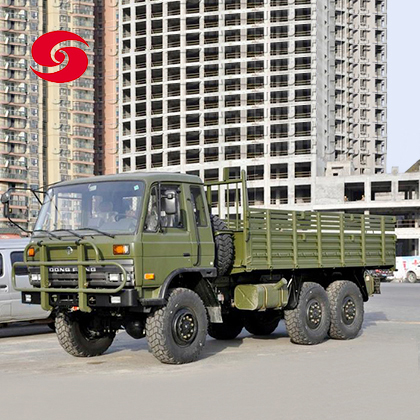

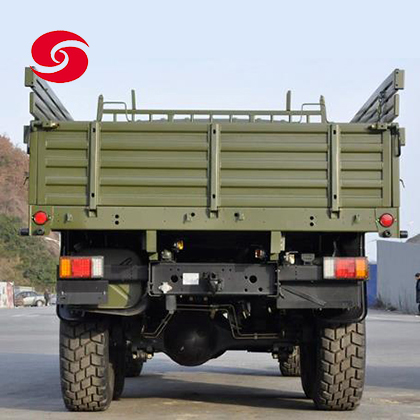

The Troop Carrier was perfectly designed with off-road road conditions, driving in muddy, ice and snow. At the same time, there is a cold start, air defense lamp, sub-tank, machine barrel, bucket, tarpaulin, tool box, gun, and other military additional devices, can be trampilized. The field of view is wide, the driving experience is comfortable, or it can also be modified into dump trucks, sprinkles, oil, rides, etc., which are highly concerned by many users at home and abroad.
Detailed Specification
| Basic Technical Condition | |
| Engine | Dongfeng Cummins B19033 |
| Gearbox | Mechanical gear, six forward blocking |
| Transfer Case | Machinery, two gears |
| Front Bridge | 3.5 tons |
| Middle Axle/Rear Axle | 3.5 tons/3.5 tons |
| Cab | Dongfeng 153 flat head Squirting |
| Tyre | 12.5R20(6 + 1) |
| Electrical Appliance | 24V circuit system |
| Other | Hydraulic clutch power; hydraulic steering power; exhaust braking |
| Basic Parameters | ||
| Size Parameters | Overall Dimensions (L*W*H) (mm) | 7760*2470*2740 |
| Cargo Box Size (L*W*H) (mm) | 4800*2294*900 | |
| Wheelbase (mm) | 3475+1250 | |
| Approach Angle/Departure angle (°) | 35/34 | |
| Quality Parameters | Follow Weight (kg) | 6725 |
| Load Quality (kg) | 3500 (off-road) | |
| Total Mass (kg) | 10435 | |
| Performance Parameters | Maximum Power (kW) | 140 |
| Displacement (ML) | 58S0 | |
| Max. Torque (n.m) | 640 | |
| Maximum Speed (km/h) | 90 | |
| Max.Gradeability (%) | 60 | |
| Minimum Ground Clearance (mm) | 305 | |
| Minimum Turing Radius (m) | >9.4 | |
| Maximum Vertical Crossing Obstacle Height (mm) | 340 | |
| Max. Fording Depth (mm) | 550 | |
| 100km Fuel Consumption (L) | 26.5 | |
| Brake Distance (30km/h full load) (M) | > | |
| Fuel Tank Capacity | 160 + 60 | |
