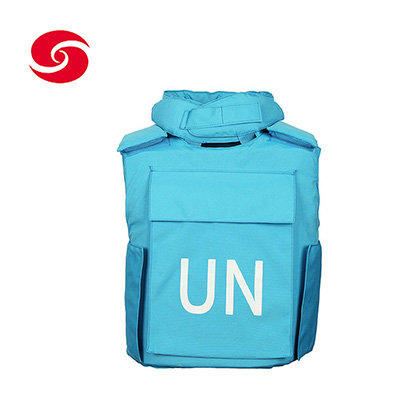

Model: Bulletproof Vest
Material: PE
Bulletproof Level: NIJ 0101.06 Level IIIA
Weight: 2.5-4.3kg
Protection Area: 0.3㎡
Material: PE
Bulletproof Level: NIJ 0101.06 Level IIIA
Weight: 2.5-4.3kg
Protection Area: 0.3㎡
A ballistic vest or bullet-resistant vest, often called a bulletproof vest, is an item of personal armor that helps absorb the impact and reduce or stop penetration to the body from firearm-fired projectiles and shrapnel from explosions, and is worn on the torso. Soft vests are made of many layers of woven or laminated fibres and can protect the wearer from small-calibre handgun and shotgun projectiles, and small fragments from explosives such as hand grenades.
Technical Specification
| Armor Type | Bullet | Bullet Mass | Conditioned Armor Test Velocity |
| IIA | 9mm FMJ RN | 8.0g (124 gr) | 355m/s (1165 ft/s) |
| .40S&W FMJ RN | 11.7g (180 gr) | 325 m/s (1065 ft/s) | |
| II | 9mm FMJ RN | 8.0g (124 gr) | 379 m/s (1245 ft/s) |
| 357 Magnum JSP | 10.2g (158 gr) | 408 m/s (1340 ft/s) | |
| IIIA | .357 SIG FMJ FN | 8.1g (124 gr) | 430 m/s (1410 ft/s) |
| .44 Magnum SJHP | 15.6g (240 gr) | 408 m/s (1340 ft/s) | |
| III | 7.62mm NATO FMJ | 9.6g (147gr) | 847 m/s (2780 ft/s) |
| IV | .30 Calier M2 AP | 10.8g (166 gr) | 878 m/s (2880 ft/s) |
| Armor Type | Distance | Max BFS Depth | Angle Test (°NATO) | Shot Per Panel |
| IIA | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 |
| 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 | |
| II | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 |
| 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 | |
| IIIA | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 |
| 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 | |
| III | 15mm | 44mm (1.73 in) | 0°6X | 6 |
| IV | 15mm | 44mm (1.73 in) | 0°1 to 6X | 6 |
Test Picture
