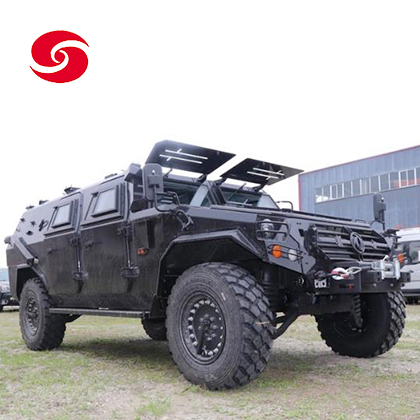

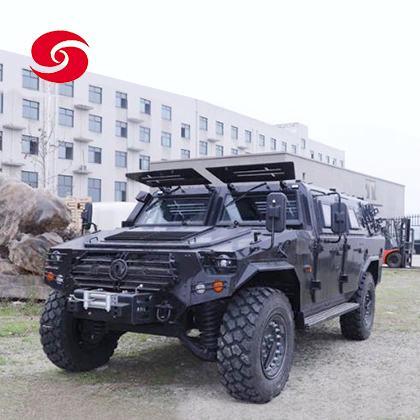

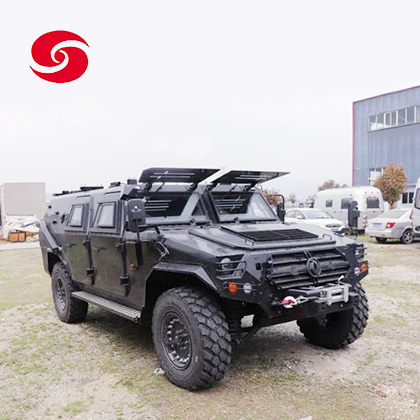

The DFYY2060MCT2A protective assault vehicle (6-person type) is of the 4×4 drive type with 6 seats and a full-protection monocoque body. Its total weight under combat status is 6.3t, its load capacity is 1.4t. It has a wheelbase of 3300mm, an engine displacement of 4.5L, an engine power of 200hp and a maximum speed of 120km/h.
Detailed Specification
| Basic Technical Condition | |
| Engine | ISDE200 41 |
| Gearbox | Mechanical gear; five forward blocking |
| Transfer Case | Four rounds of full-time driver highand low |
| Front Bridge | 2.9 tons |
| Middle Axle/Rear Axle | 3.5 tons |
| Tyre | 3O5/8OR18MPT |
| Electrical Appliance | 24V circuit system |
| Basic Parameters | ||
| Size Parameters | Overall Dimensions (L*W*H) (mm) | 4950 x 2375 x 1860 |
| Wheelbase (mm) | 3300 | |
| Approach Angle/Departure angle (°) | 56/40 | |
| Quality Parameters | Follow Weight (kg) | 4900 |
| Load Quality (kg) | 1400 | |
| Total Mass (kg) | 6300 | |
| Performance Parameters | Maximum Power (kW) | 134 |
| Displacement (ML) | 4500 | |
| Max. Torque (n.m) | 560 | |
| Maximum Speed (km/h) | 120 | |
| Max.Gradeability (%) | 60 | |
| Minimum Ground Clearance (mm) | 400 | |
| Minimum Turing Radius (m) | >8.5 | |
| Maximum Vertical Crossing Obstacle Height (mm) | 450 | |
| 100km Fuel Consumption (L) | 19 | |
| Fuel Tank Capacity | 50 + 56 | |
