Maneuver Performance
Max. Cruising Speed: 95 km/h (highway) , 105 km/h(highway,instantaneous)
Approach / Departure Angle: 25°/23°
Grade Ability: 60%
Driving Side Slope: 30%
Max. Cruising Range: 700 km(highway)
Min. Turning Diameter: ≤18m
Ground Clearance: 400 mm(lowest point of the axle)
Fording Depth ( Without Preparation): 1100 mm
Vertical Obstacle: 350 mm
Working Temperature: -20°-+55°
Fire Extinguishing System: Automatic fire extinguishing system in engine room; Portable fire extinguisher × 2
Max. Cruising Speed: 95 km/h (highway) , 105 km/h(highway,instantaneous)
Approach / Departure Angle: 25°/23°
Grade Ability: 60%
Driving Side Slope: 30%
Max. Cruising Range: 700 km(highway)
Min. Turning Diameter: ≤18m
Ground Clearance: 400 mm(lowest point of the axle)
Fording Depth ( Without Preparation): 1100 mm
Vertical Obstacle: 350 mm
Working Temperature: -20°-+55°
Fire Extinguishing System: Automatic fire extinguishing system in engine room; Portable fire extinguisher × 2
Level of Protection
Front: 100m distance resistant 12.7mm bullet
Side / Back: 100m distance resistant 7.62mm bullet
All Sides: CEN1063 B6, B7
Anti Mine Protection: 8kg TNT
Front: 100m distance resistant 12.7mm bullet
Side / Back: 100m distance resistant 7.62mm bullet
All Sides: CEN1063 B6, B7
Anti Mine Protection: 8kg TNT
Standard Specification
| No. | 1 |
| Parts | Chassis |

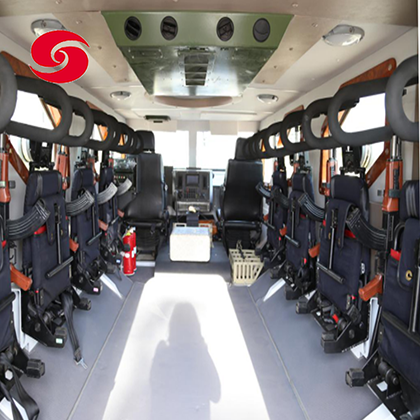

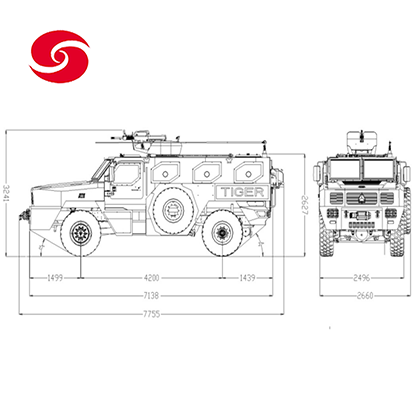

| Description | Sinotruk Military Chassis Left or Right hand drive Overall Dimension: About 7755 mm × 2660 mm × 2627 mm Seats: 1+1+10 1 driver, 1 commander, 10 soldiers |
| Quantity | 1 set |
| Remark | Total Combat Weight: 15000kg Kerb weight: 13800kg Effective Load: 12000kg Chassis: Military Chassis 4×4 Engine Model: Diesel; Mann MC07.31, 6-cylinder, water-cooled engine; Turbocharged mid-cooler, 320hp/2300rpm; 1230N.m/1200 to 2300rpm or equality. Transmission: FAST manual shifting 9 forwards&1 reverse or equality(optional automatic version) Transfer Case: ZQC1200 or equality ; Full time four wheel drive; lockable central differential; high 1.00, low 1.75 |
